19-4503; Rev 0; 4/09
3-Channel, Low-Leakage ESD Protector
General Description
The MAX14541E low-capacitance Q 15kV ESD-protection
diode array is designed to protect sensitive electronics
attached to communication lines. Each channel consists
of a pair of diodes that steer ESD current pulses to V CC
or GND.
The MAX14541E protects against ESD pulses up to
Q 15kV Human Body Model (HBM) and Q 15kV Air-Gap
Discharge, as specified in IEC 61000-4-2. The device
has a 6pF (typ) on-capacitance per channel, making
them ideal for use on high-speed data I/O interfaces.
The MAX14541E is a triple I/O protector designed for
biometric connectors, portable connectors, and SVGA
video connections with ultra-low leakage current.
The device is available in a 5-pin SC70 package and is
specified over the -40 N C to +125 N C automotive operating
Features
S High-Speed Data Line ESD Protection
±15kV Human Body Model
±15kV IEC 61000-4-2 Air-Gap Discharge
±8kV IEC 61000-4-2 Contact Discharge
S 6pF (typ) Low Input Capacitance
S 1nA (max) Low-Leakage Current
S +0.9V to +16V Supply Voltage Range
S 5-Pin SC70 (2.0mm x 2.2mm) Package
Ordering Information
PART
temperature range.
Glucose Meters
MP3 Players
Digital Cameras
Applications
TEMP PIN-
RANGE PACKAGE
MAX14541EAXK+T -40 N C to +125 N C 5 SC70
+ Denotes a lead(Pb)-free/RoHS-compliant package.
T = Tape and reel.
TOP
MARK
ATY
Handheld Equipment

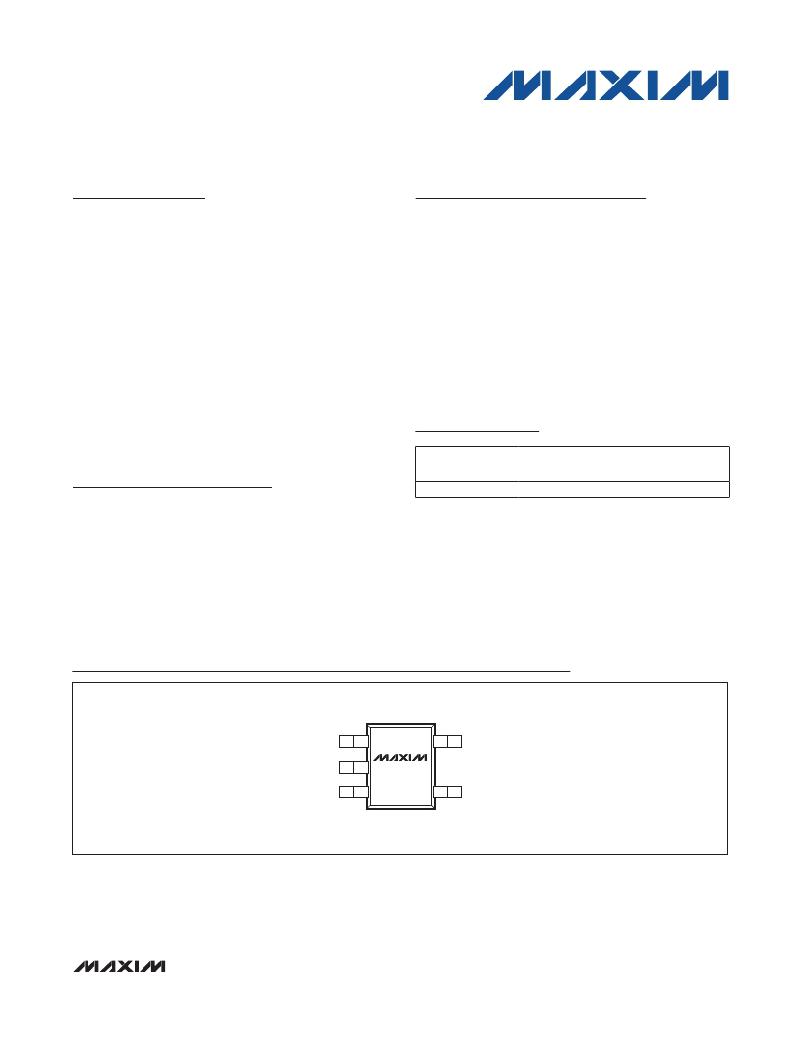

Pin Configuration
TOP VIEW
V CC
GND
I/O-1
1
2
3
+
MAX14541E
5
4
I/O-3
I/O-2
SC70
_______________________________________________________________ Maxim Integrated Products 1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
